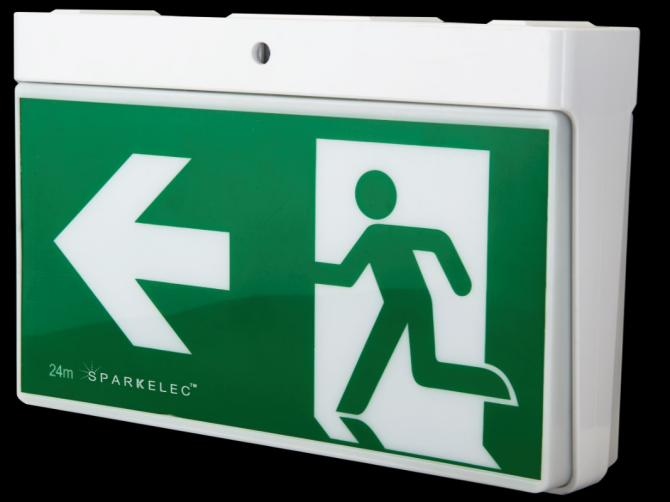

SPARKELEC Universal Wall & Ceiling Mount LED Exit Sign Gen2 LiFEPO4 Lithium Battery - SP2001WH

SPARKELEC Universal Wall & Ceiling Mount LED Exit Sign Gen2 LiFEPO4 Lithium Battery - SP2001WH

BOX QTY = 4 PCS (CHECK QTY DISCOUNT TAB)

*AS2293 TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

- Double Sided Wall & Ceiling Mount Exit

- Running Man & Running Man Arrowed Decals Included

LED:  16pcs SMD2835 LEDs,3.5w

Effective Range: 24M

Lamp Protection: Over charge and discharge protection

Charging current: 30mA

Convert voltage: 150-180V AC

Discharging Current: 160mA

Discharge Duration: 3 Hours

Battery Specs: 3.2V 1500mAh LiFePO4

Compliant & TESTED TO AS2293.3 / AS2293 CERTIFIED

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
